How to set up PTZ on a Winbook DVR (D60 D70 D04 series)
Description: This article will show you how to configure a PTZ camera on a Winbook DVR.

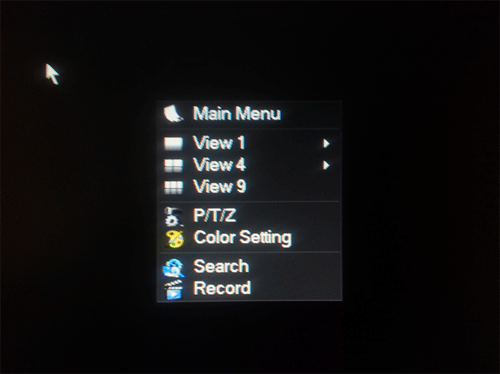

- Right click anywhere on the screen and choose the Main Menu option.

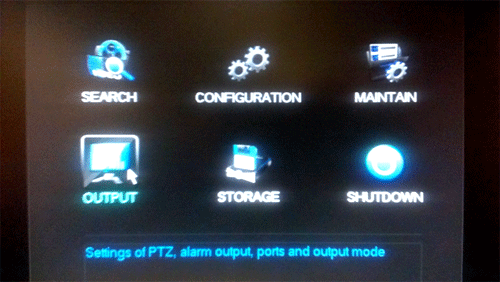

- From the Main Menu choose Output.

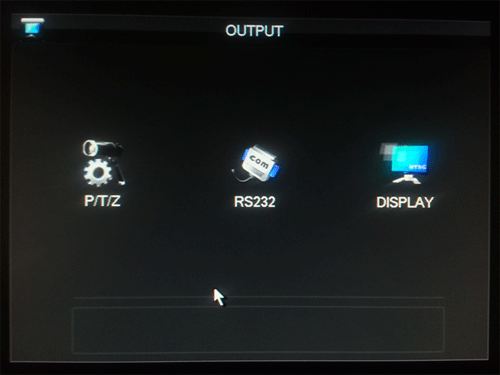

- From the Output menu choose PTZ.

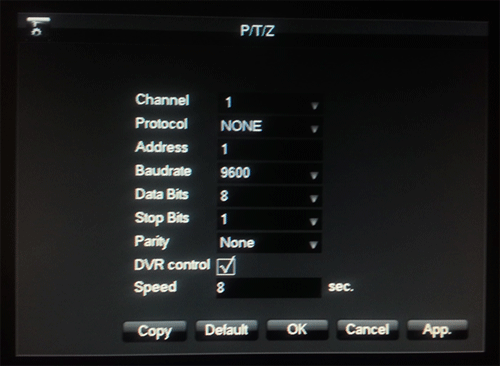

- Look at your PTZ camera or manual for the camera and locate the Channel, Protocol, Address, and Baudrate. Then enter this into the PTZ settings then click OK.

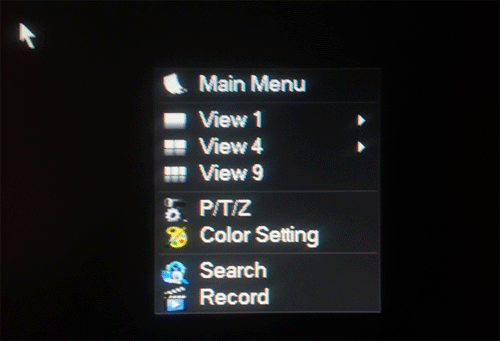

- Now right-click again, this time click P/T/Z.

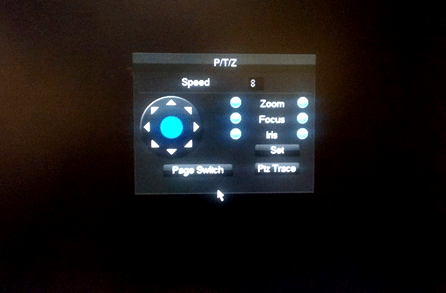

- From here you can now control the Camera.
